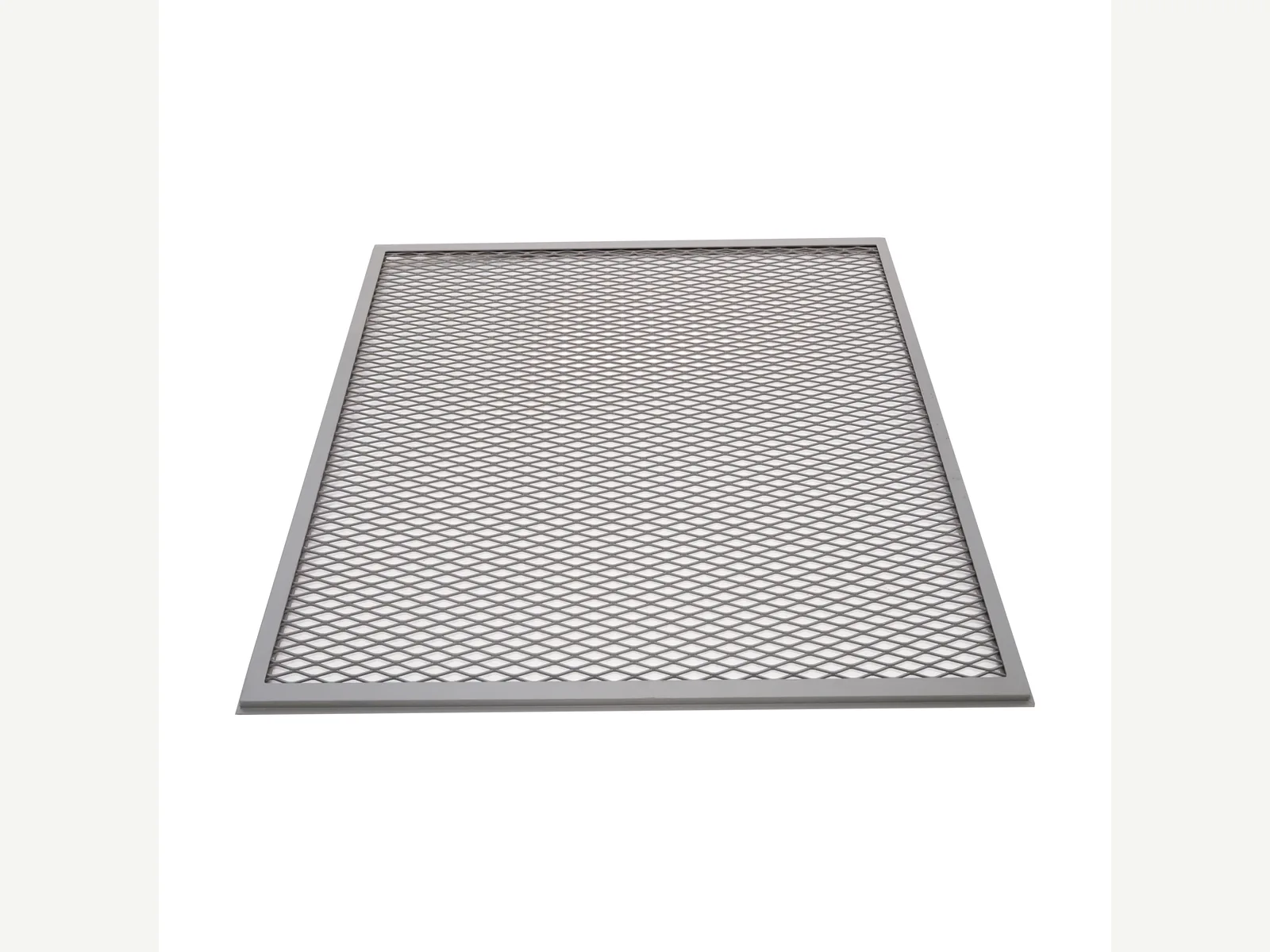

Galvanized steel raised expanded metal panel

EXPANDED METAL

Galvanized Steel Expanded Metal

An open steel network for practical screens and enclosures. Specify the mesh geometry, support detail and zinc coating route together to address both installation and exposure.

Open steel constructionCoating-aware detailingEnclosure-focused specification
Request a Quote View Specifications
Base MaterialSteel mesh with a specified zinc coating.
ProfileRaised or flattened to the project drawing.
InstallationOpening direction, supports and edges.
ProtectionAgree coating route and repair needs.

PRODUCT OVERVIEW

Galvanized Expanded Metal Planned as a Complete Enclosure

Galvanized expanded metal combines an integral steel network with zinc protection for practical screens, partitions and enclosure panels. Starting sheet thickness, strand width, SWD, LWD, mesh direction and the raised or flattened profile should be coordinated with the frame, fixing method and finished dimensions. The zinc coating route must also be treated as part of the product specification.

Cutting, welding, forming and installation can affect coated areas, so edge treatment and any required repair should be considered before the panel is released for production. Typical inquiries include equipment enclosures, storage partitions, ventilation screens and general industrial guarding. Where personnel or machinery safety is involved, opening size, distance from hazards, supports, fixings and the complete installed guard require separate assessment.

Galvanized steel raised expanded metal panel

MATERIAL SELECTION

Why Specify Galvanized Steel Expanded Metal?

Key Advantages

The integral steel network provides openings for visibility and ventilation, while a zinc coating adds corrosion protection. It is a practical starting point for many utility screens.

Considerations

Exposure, coating quality and later fabrication affect protection. Opening size alone does not establish a safe guard, and standard mesh should not be assigned an unverified load capacity.

Best-fit Uses

Equipment enclosures, storage partitions and ventilation screens, subject to the required access and support details. Define how people, equipment and maintenance access interact with the enclosure.

TECHNICAL INFORMATION

Specifications & Custom Range

Final dimensions and compatible combinations are confirmed against the approved drawing or mesh specification before production.

Steel & Coating

State the base material and required zinc coating route and acceptance criteria.

Thickness & Strands

Specify starting sheet thickness, strand width and overall mesh thickness where relevant.

Opening & Orientation

Give SWD, LWD and measurement convention, with the installed direction marked.

Profile & Dimensions

Choose raised or flattened; include panel size, tolerances, frames and cut-outs.

Edges & Finishing

Review cuts, welds and damaged coating areas with the finishing or repair plan.

Order & Availability

Common specifications are regularly stocked, while non-standard sizes, materials and finishes can be produced to order. Final quantities and delivery schedules are confirmed with the quotation.

APPLICATIONS

Applications for Galvanized Steel Expanded Metal

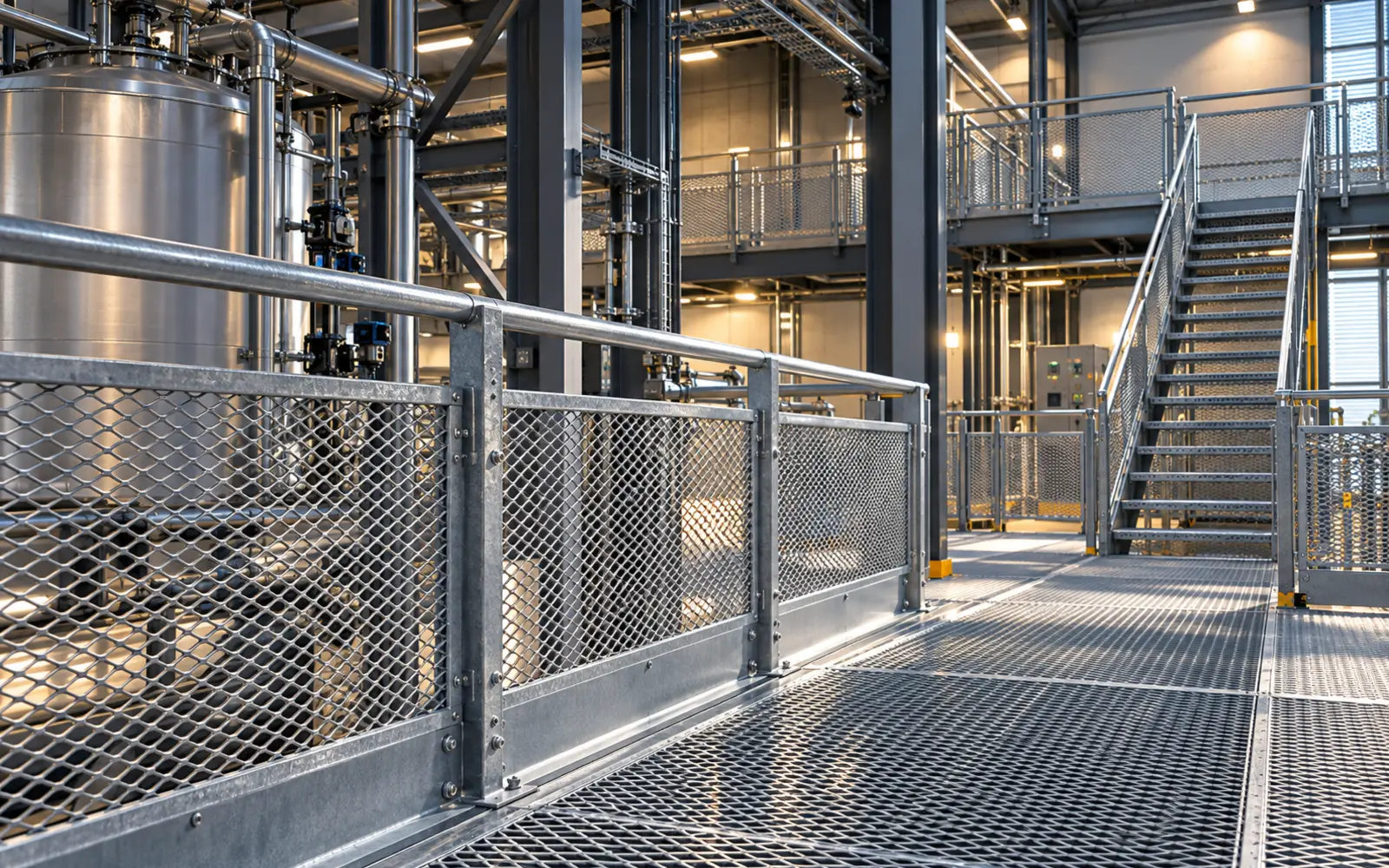

Industrial platform with metal mesh safety guards, AI concept

Industrial Walkways

AI application concept

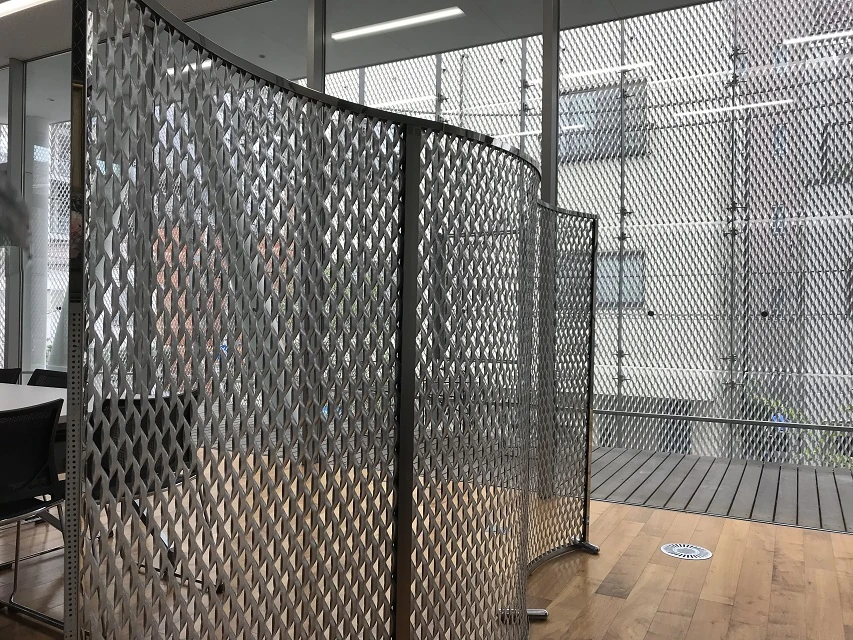

Expanded metal partition panels within dark frames in an interior space; application illustration

Interior Partitions

Framed expanded metal panels for interior partitions and visual separation.

Application reference image

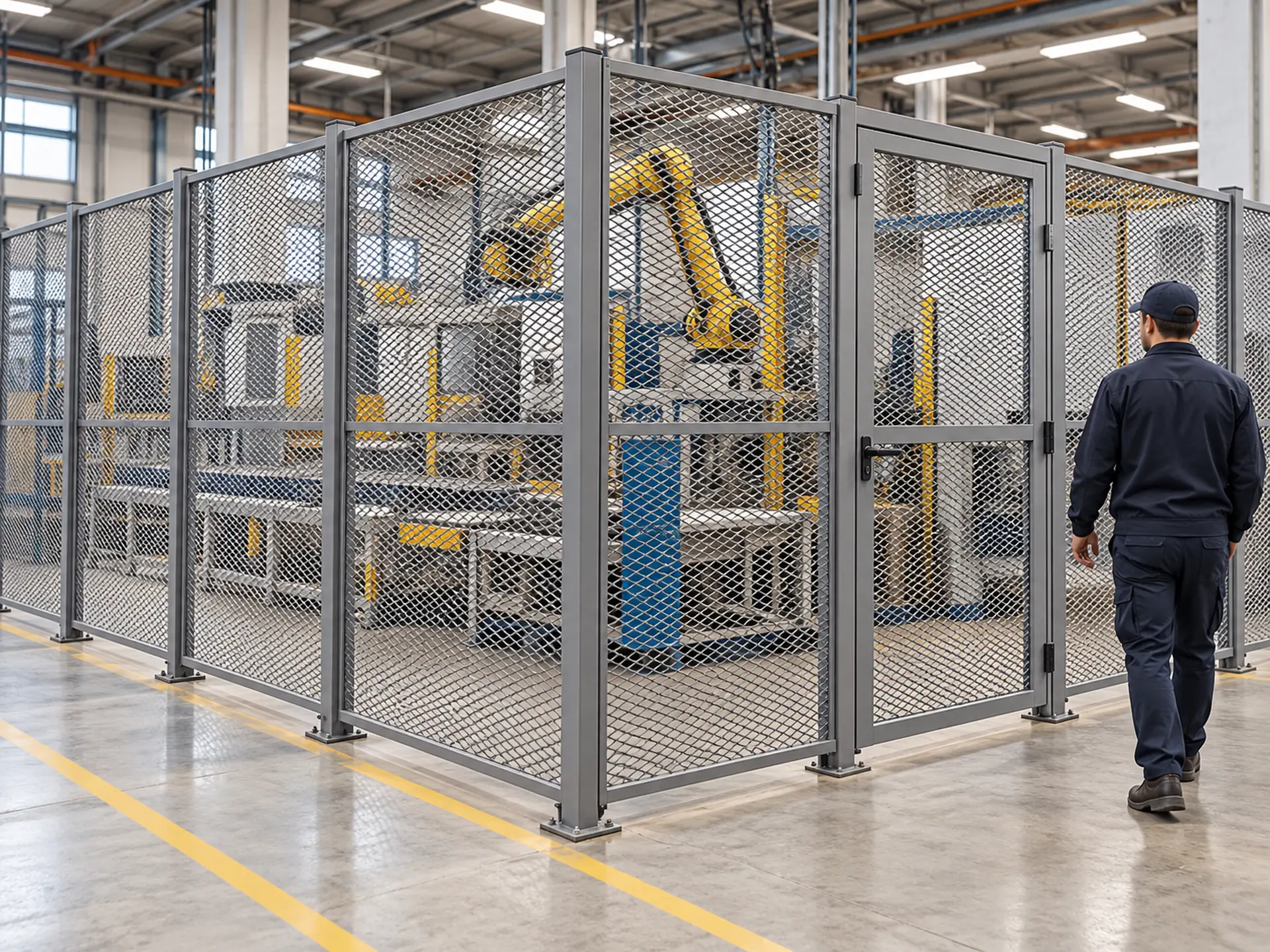

AI application concept showing framed expanded metal panels around industrial equipment

Safety Fencing

AI application concept

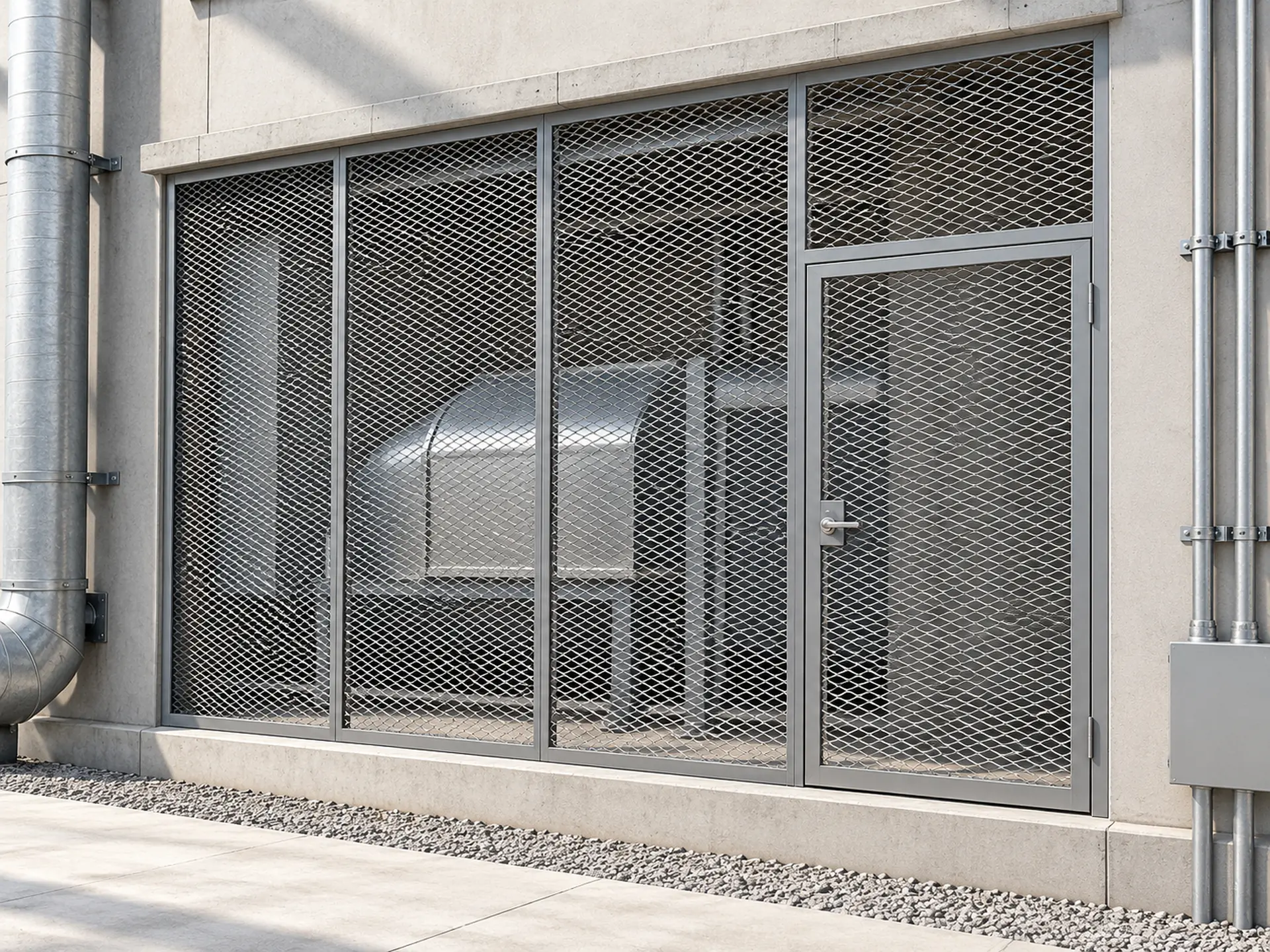

AI application concept showing expanded metal ventilation screens around equipment

Ventilation Panels

AI application concept

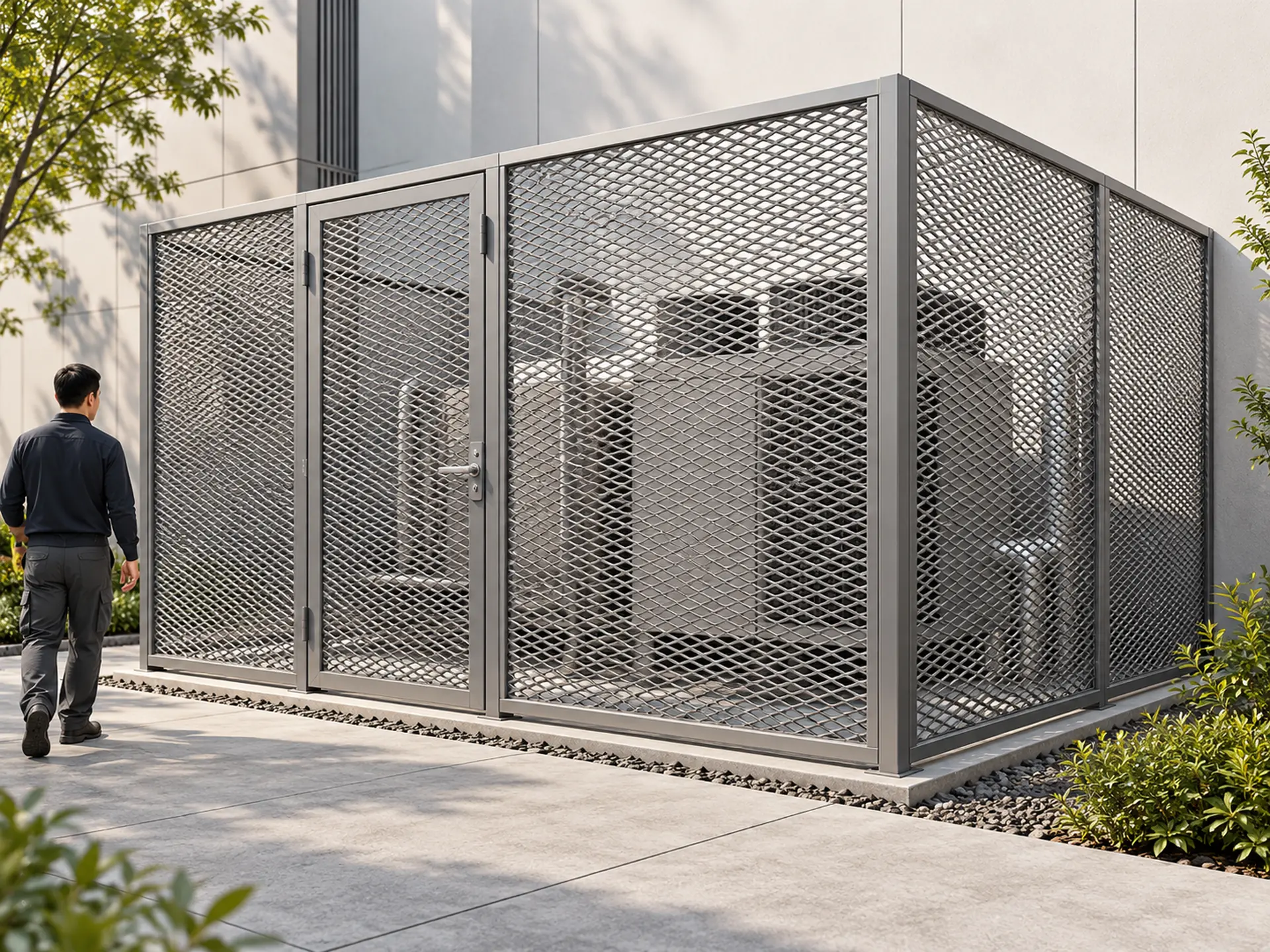

AI application concept showing expanded metal screens around outdoor utility equipment

Outdoor Utility Screens

AI application concept

FROM SHEET TO FINISHED EXPANDED METAL

From Expanded Steel to Protected Enclosure

01

Define the Assembly

Coordinate mesh, frame and fixing requirements.

02

Form the Mesh

Set openings, strand dimensions and profile.

03

Coordinate Protection

Agree the galvanizing sequence and any repair needs.

04

Check Installation Fit

Verify finished size and agreed attachment details.

RELATED PRODUCTS

Explore Related Expanded Metal Materials

Stainless steel expanded metal with raised diamond openings

Stainless Steel Expanded Metal

Corrosion-resistant 304 or 316 mesh for demanding uses.

View Product

Aluminum raised expanded metal sheet

Aluminum Expanded Metal

Lightweight expanded sheet for facades and guards.

View Product

Expanded metal panel in a project-specific material

More Expanded Metal Materials

Alternative project-specified metals subject to review.

View Product

FREQUENTLY ASKED QUESTIONS

Galvanized Steel Expanded Metal FAQ

Material, specification and commercial details are confirmed for the actual project.

Can I cut the panel after delivery?

Identify site cuts in advance and agree how exposed or damaged areas will be addressed. Do not assume the original coating specification covers every later change.

Is it suitable for machinery guarding?

Potential suitability depends on the complete guard design, opening size, distance from hazards, supports and applicable requirements.

Is flattened mesh always the stronger choice?

No. Strength and stiffness depend on geometry, direction, material and support conditions, not the profile name alone.

Can galvanized expanded mesh be painted?

A compatible preparation and coating system needs to be specified; confirm it with the chosen galvanizing route.

Do the gallery images prove a completed AMBER project?

Application images illustrate possible uses unless a project is explicitly identified and verified. Actual suitability is reviewed against your drawing.

Galvanized steel raised expanded metal panel

LET’S WORK TOGETHER

Plan Your Expanded Steel Enclosure

Send the mesh dimensions, support layout and coating requirements. Not sure of the specification? Send a photo, sketch or application description, and we can help identify the details needed for a quotation. Send photos or drawings by email to trade@hightopmetalmesh.com.

Request a Quote
